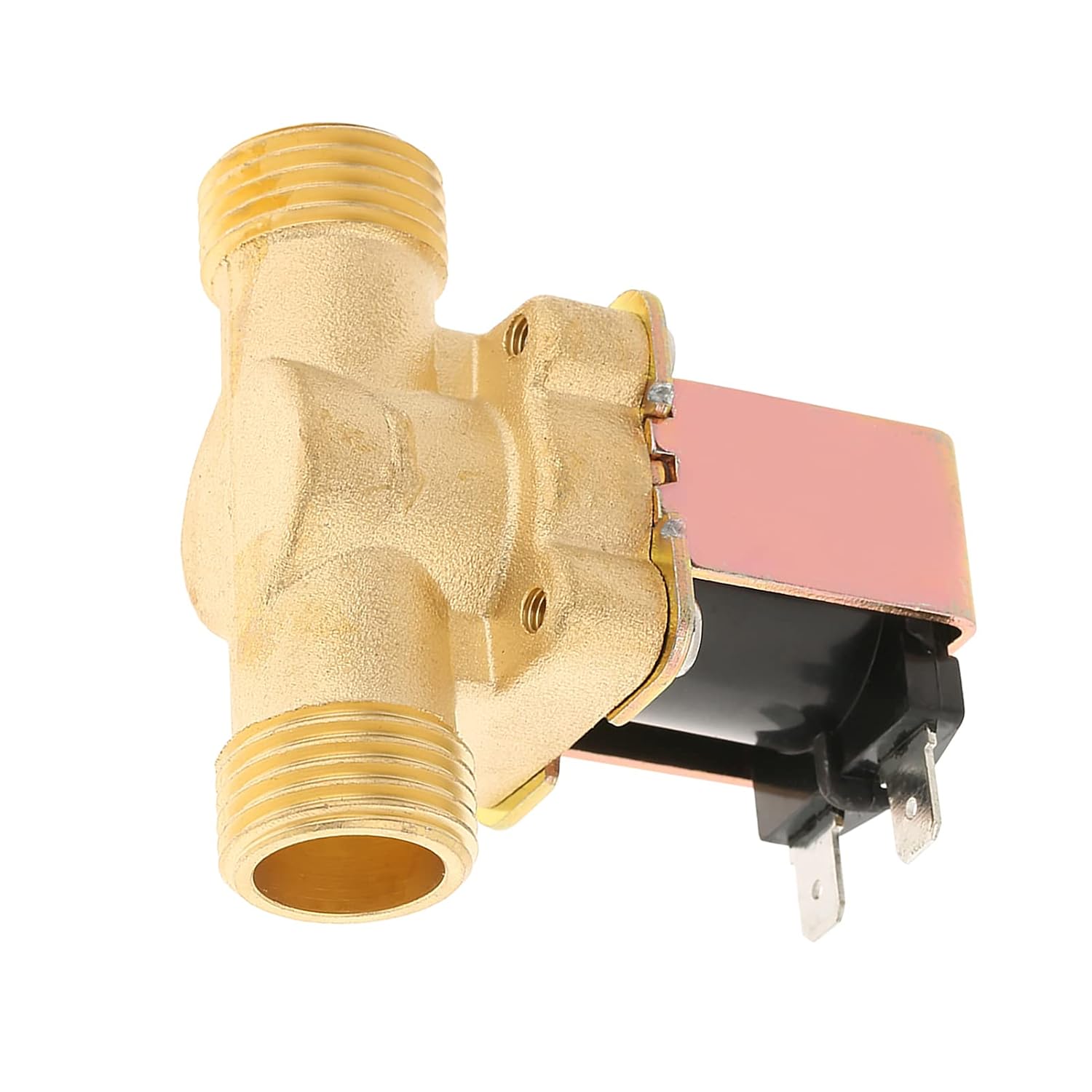

Electric Solenoid Valve, 1/2" DC 12V Normally Closed Brass Electric Solenoid Valve for Water Control
Product details
| Management number | 247464997 | Release Date | 2026/08/16 | List Price | US$6.29 | Model Number | 247464997 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Descriptions: This electric solenoid valve is all brass casting structure, precise and reliable, has the characteristic of wear-resistant, anti- and high temperature resistance. Material: Brass Voltage: 12V Nominal diameter: 1/2" Water pressure: 0.02-0.8Mpa Size: 6.5 x 6 x 3.5cm / 2.56 x 2.36 x 1.38inch Weight: 218g 1. Environmental conditions for inlet valve of low pressure solenoid valve Altitude:<2,500 meters Ambient temperature: 0 to 40 ° C Air relative humidity: <95% (25 ° C temperature) 2. Type and rated technical parameters Type: guide (one-way) solenoid valve Rated voltage: 12V Rated current: 12v-300mA Working mode: short-time quota system (intermittent duty cycle) Insulation grade: E Use of fluid: (0-55 ° C) water Use water pressure: 0.02-0.8Mpa 3.Water flow characteristics Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8 Flow (L/min): > 5 >11 >18 >32 Nominal diameter: 4 points double thread, outlet diameter 13 (mm) Life: > 100,000 times Package Included: 1 x Electric Solenoid Valve
- This electric solenoid valve is all brass casting structure, precise and reliable
- Pressure regulating valve (steady flow valve) function similar to water flow switch
- This solenoid valve not only can keep the constant current steady flow, but also prevent the dry burning and monitoring the flow
- Mechanical no power consumption, steady flow adjustable
- This electric solenoid valve has the characteristic of wear-resistant, anti- and high temperature resistance
| UPC | 749249709564 |
|---|---|
| ASIN | B07QM6CPRH |
| Size | 6.5 x 6 x 3.5 cm / 2.56 x 2.36 x 1.38 inches |
| Brand Name | Vikye |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Item Weight | 0.02 kg |
| Thread Size | 1/2" or 13mm |
| Thread Type | NPT |
| Manufacturer | Vikye |
| Model Number | vfgup3a458 |
| Material Type | Brass |
| Connector Type | Threaded |
| Exterior Finish | Brass |
| Item Dimensions | 3.15 x 3.15 x 3.15 inches |
| Number of Items | 1 |
| Number of Packs | 1 |
| Number of Ports | 1 |
| Maximum Pressure | 800 kilopascal |
| Number of Pieces | 1 |
| Specification Met | MSS SP 72, MSS SP 80, ASTM, ANSI B16.34, ASME B16.11 |
| Outlet Connection Size | 13 millimeters |
| Manufacturer Part Number | vfgup3a458 |
